90° Stepper Motor Mount for Extrusion

April 19, 2024

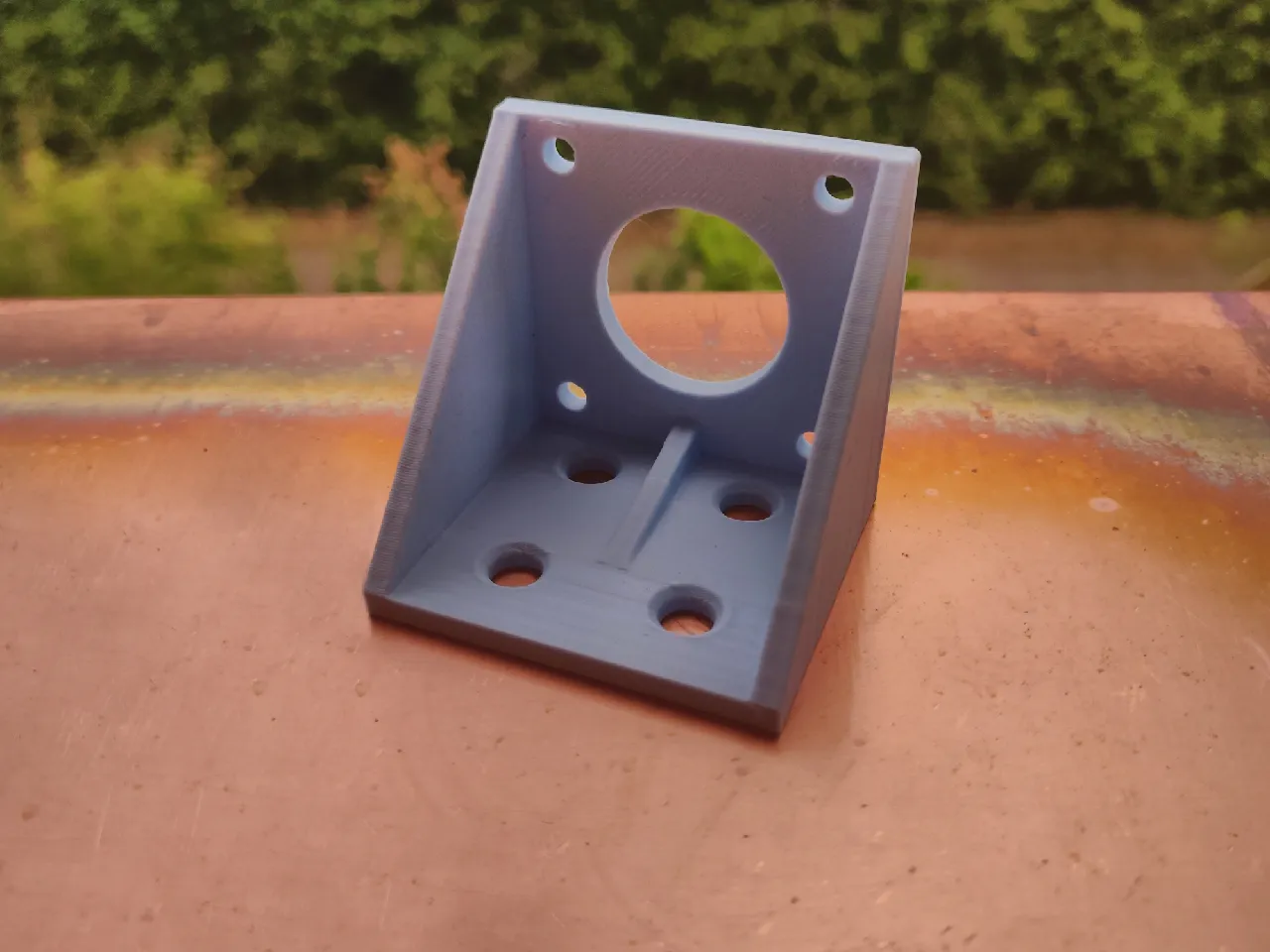

3D-printed stepper mount sitting on a copper plate. The extrusion holes are facing down, whilst the camera points directly at the stepper cutout

Description

90° Extrusion Stepper Motor Mount, to mount a stepper motor to a 40x20 extrusion (or rather a two 20x20 extrusions next to one another)

Designed to fit a Creality 42-34 motor.

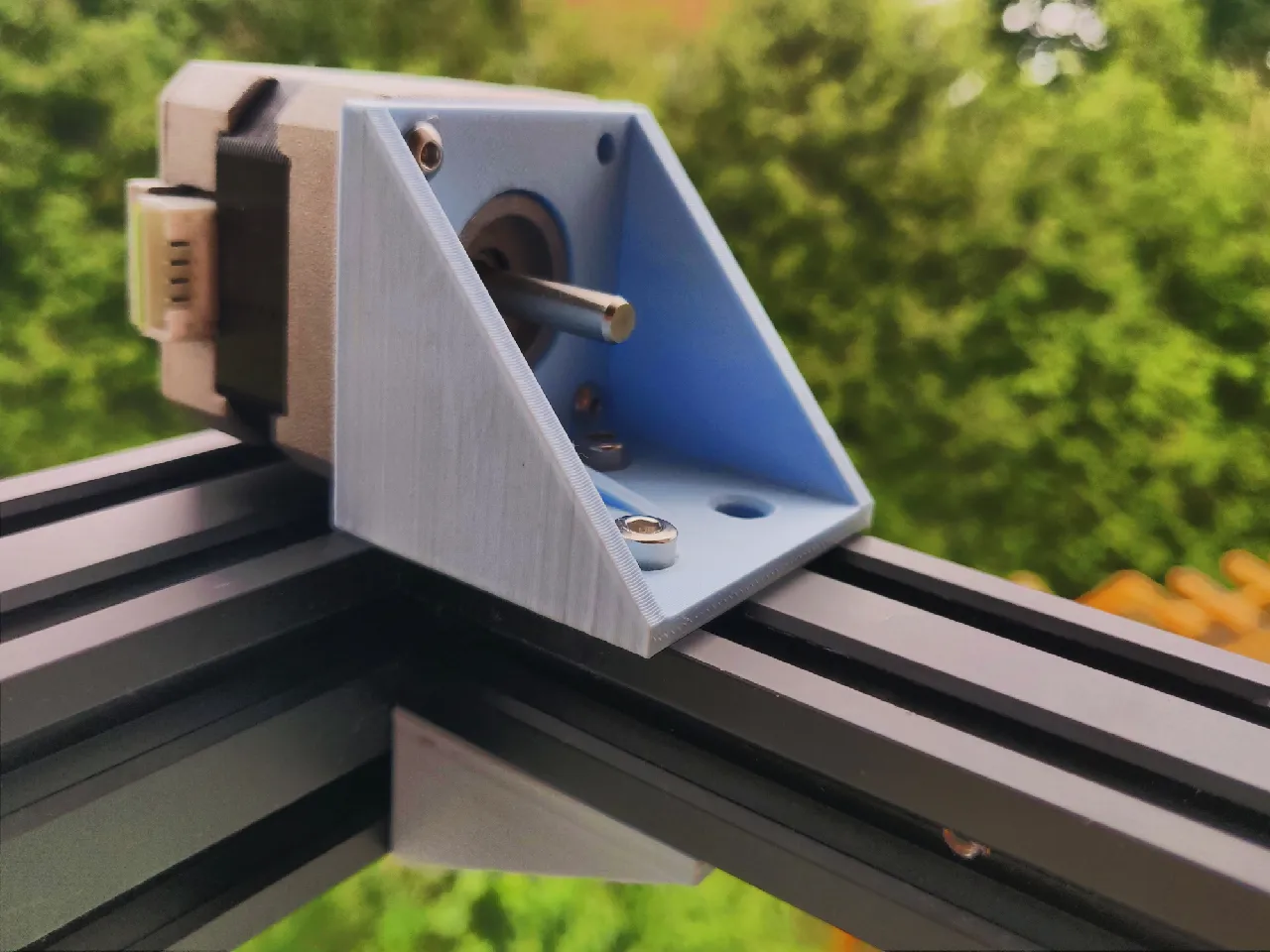

Stepper mount screwed onto a piece of extrusion, with a stepper motor mounted through the back

This model was designed using OpenSCAD, and can easily be customized to fit any extrusion size, model dimensions and screw hole diameter.

The model and source files are licensed under CC-BY-SA 4.0
