Ceiling Mount

March 1, 2025

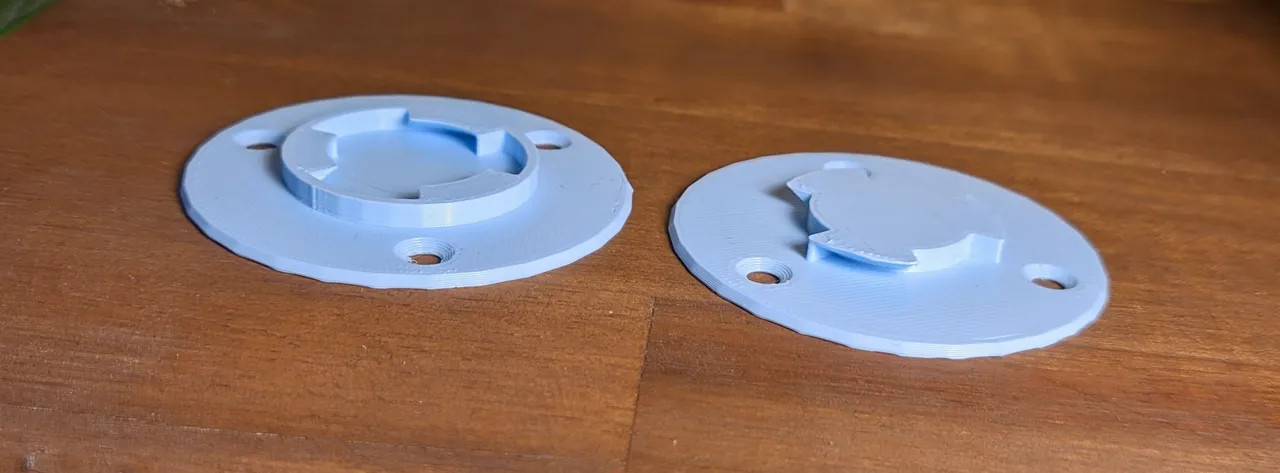

Two 3D printed models sitting on a desk. The left one has circle with hooks on the inside. The right one has a cylinder in the middle with hooks on the outside. The positions of the hooks line up, allowing the parts to fit together

Description

Two-part ceiling mount to easily mount objects to the ceiling, by rotating the two pieces into each other

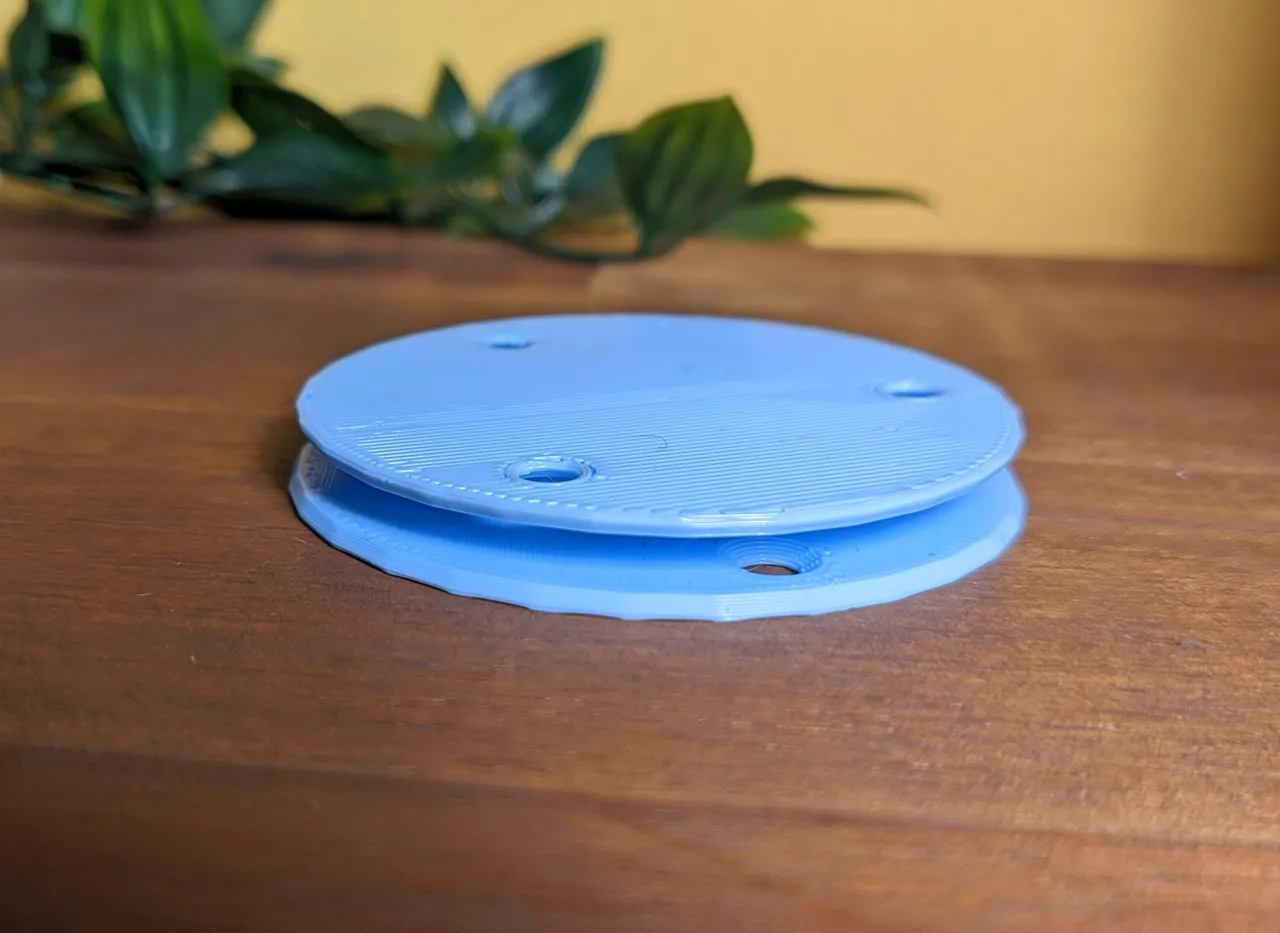

Both plastic parts now connected together and stacked on top of one another.

Mounting

  1. Mount one side to the object you are trying to hang.

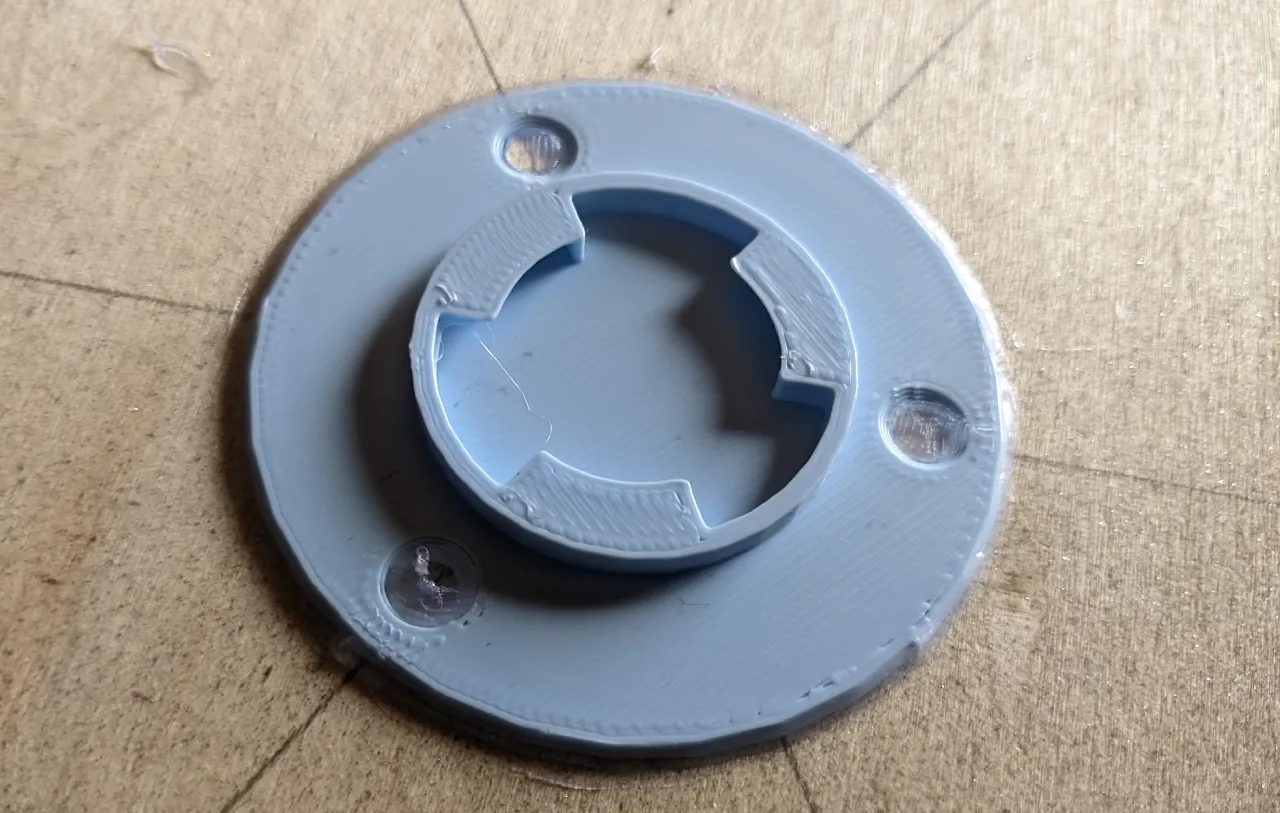

    The part with the hooks on the inside glued onto a wooden surface
  2. Mount the other side to the ceiling itself.

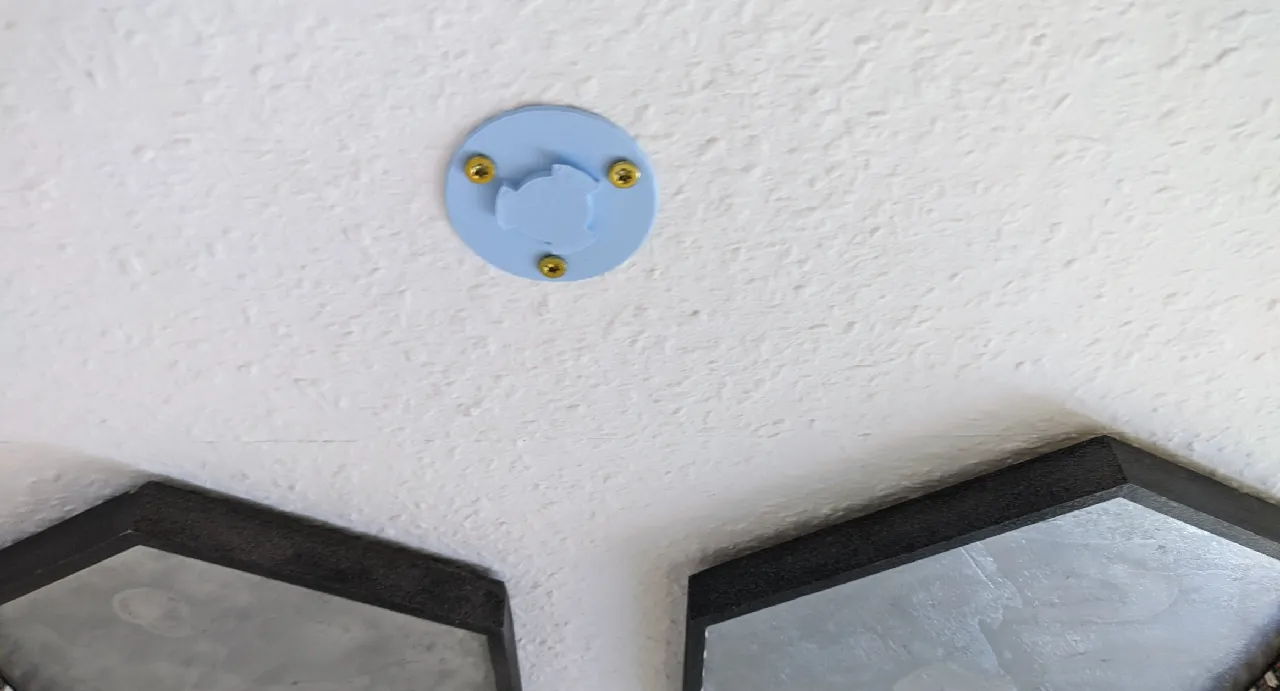

    The part with the hooks on the outside screwed into the ceiling using three screws through the provided mounting holes
  3. Push the two together and rotate to lock them together.

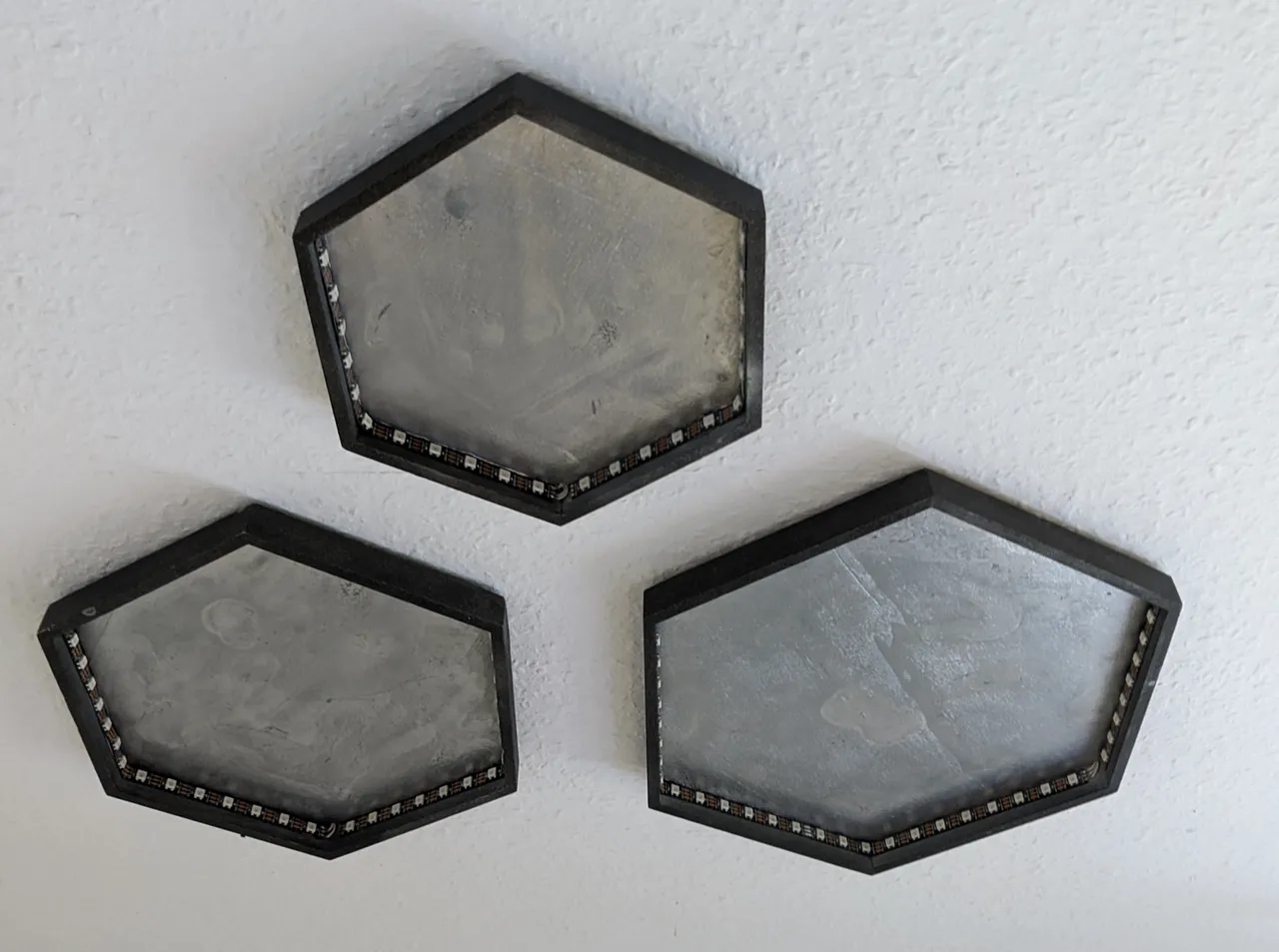

    Three lights hanging on the ceiling. (Mounted using the mounting mechinsm)

The model and source files are licensed under CC-BY-SA 4.0
