Simple Desktop Speaker

September 14, 2022

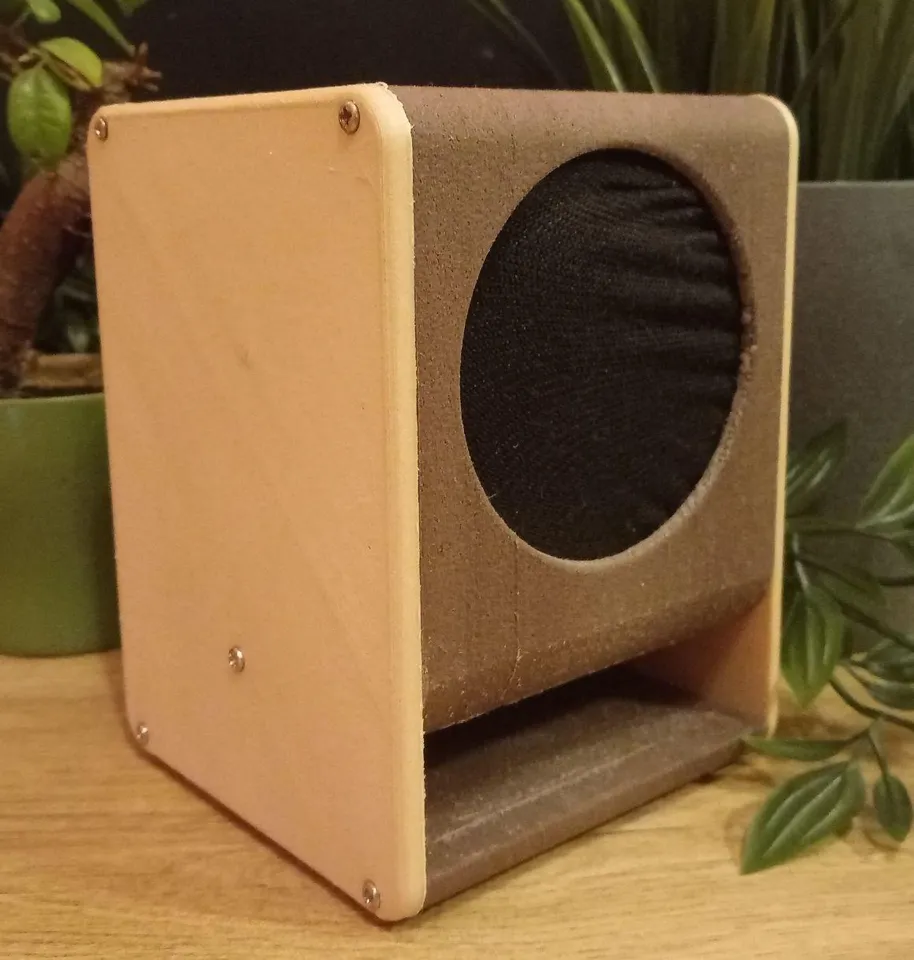

Speaker from the front. The central part is made out of dark brown plastik, whilst the two side panels are made out of lighter shade of brown

Description

Simple Desktop Speaker designed for speakers modules with an outer radius of 8cm.

I designed this for a set of old speakers I took from an electronic keyboards, I have no background in music, and don’t know if the speaker works properly.

Parts

The following parts are required to assemble one speaker:

2x Side panel
1x Speaker core
1x Speaker (outer radius 8cm)
1x piece of cloth (to wrap the speaker, before sliding it in)
2x wire to connect the speaker to a cinch connector
1x cinch connector
10 machine screws

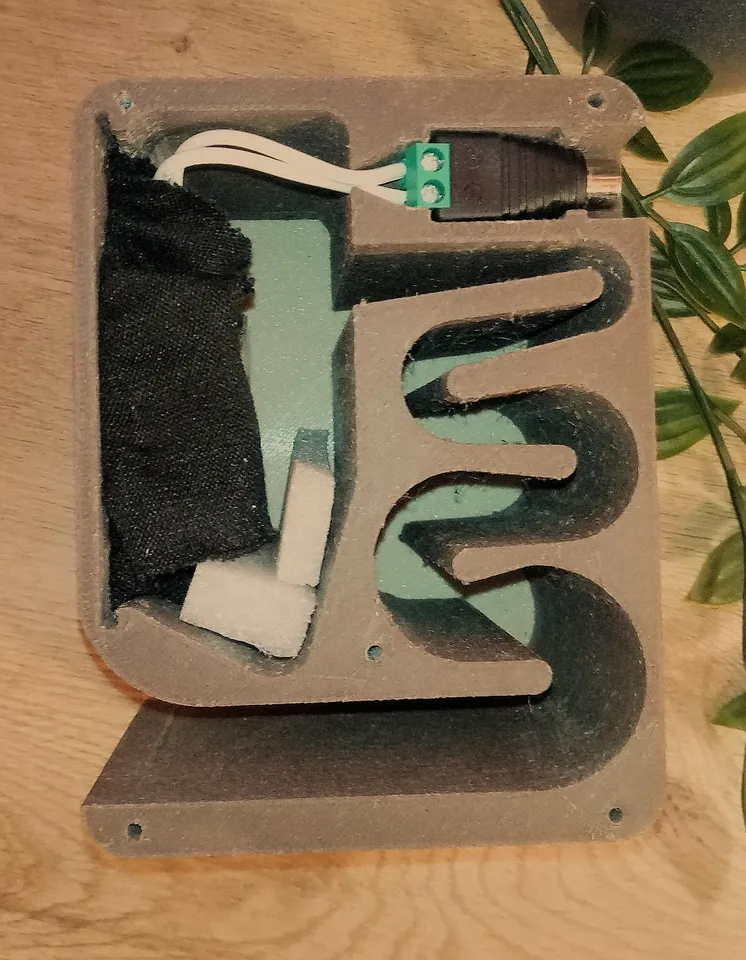

Speaker shown from it’s side, with one side panel missing, showing two wires running from the cinch connector to the speaker. You can also see the sound tunnel snaking through the speaker.

When you assemble two speakers, you can use a common cinch to audio jack cable to connect the speakers to your computer.

Links

The model and source files are licensed under CC-BY-NC-SA 4.0
