True Fruits Bottle Cap

Description

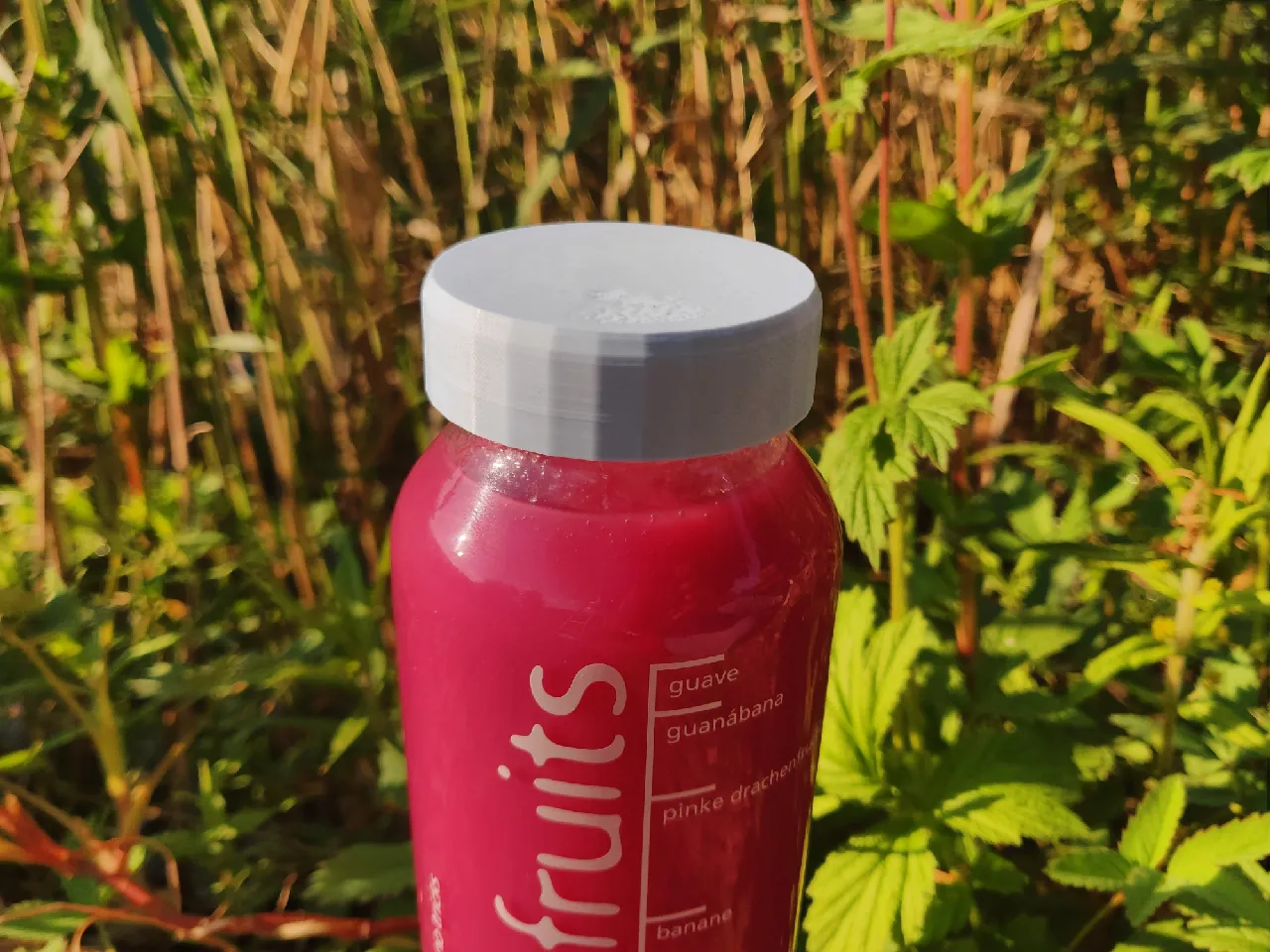

Bottle cap for a 750ml true fruits smoothie bottle.

Great if you want to use an empty True Fruits glass bottle as your daily-driver drink bottle, but you want a cap that is a little bigger and easier to open.

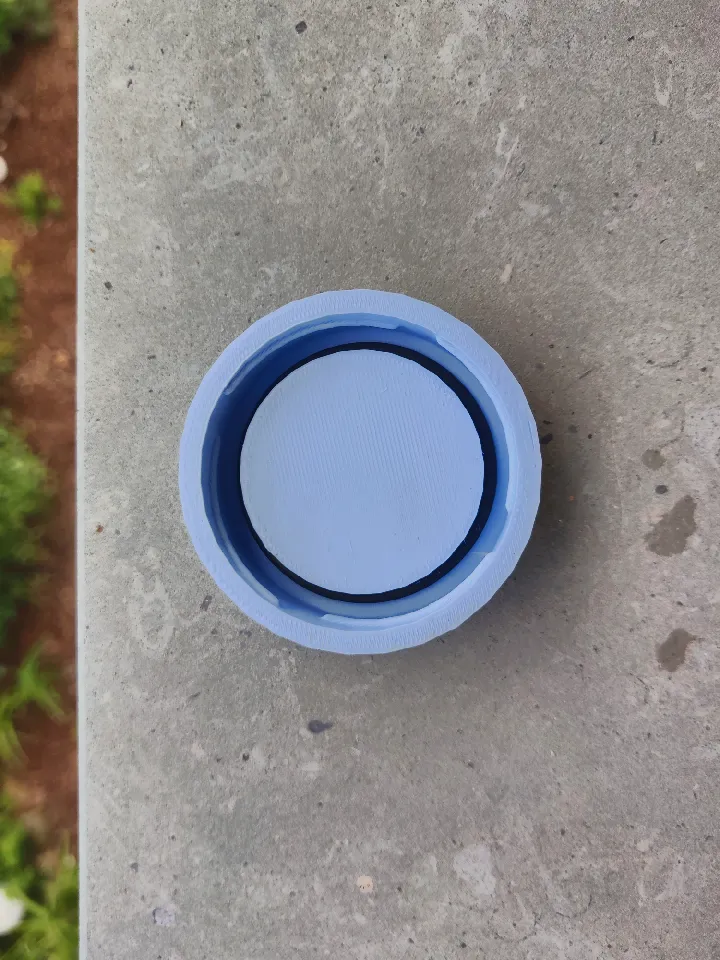

The cap allows you to insert a rubber gasket for better isolation.

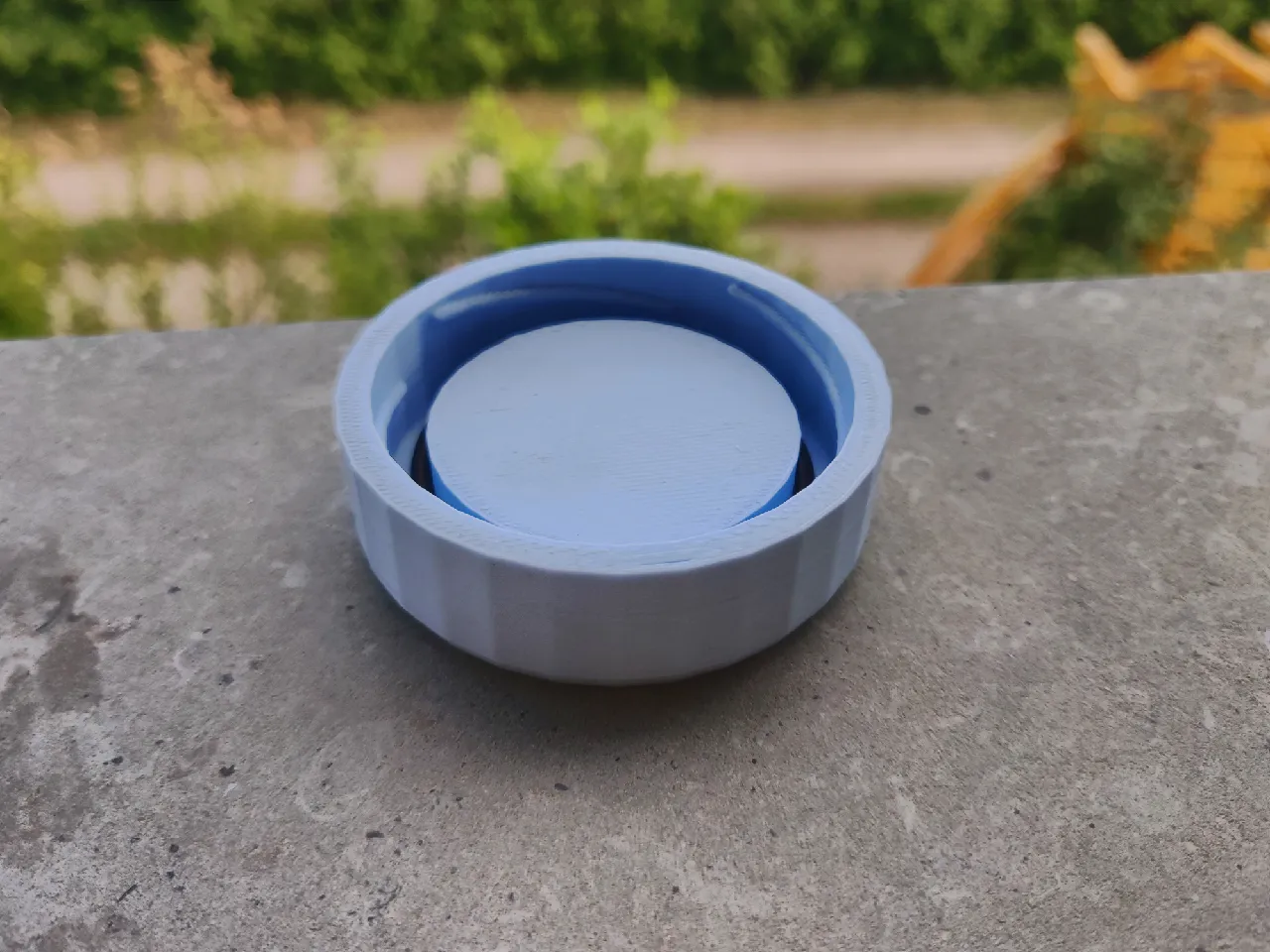

It also features a thread to be properly screwed on to the bottle.

Requirements

• Filament (obviously, I used PLA)
• A rubber gasket (I used a 30×3.1 version, which works great. You might have to modify the model if you use a different height/width)

Assembly

1. Print the model on its top, that way it won’t need support
2. Take the rubber gasket and stretch it over the middle part (consider asking a second person for help - especially when using a small gasket)
3. Done. I’d recommend filling the bottle with some water and shaking it, or turning it upside down, to make sure it doesn’t leak. Mine worked first try, however you might have to adjust the model or the rubber gasket placement/size.

Links

The model and source files are licensed under CC-BY-SA 4.0

• Download Cap STL

• Download Cap SCAD source

• View on Printables
